Product Description

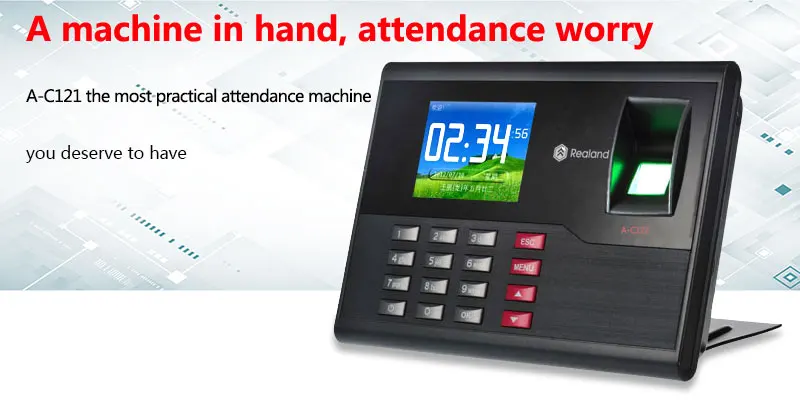

AC121 TCP/IP  biometric fingerprint time attendance system English office employee time clock machine for access control system

fingerprintmachinesrilanka
fingerprintmachinesrilanka

Brief Intruction:face recognition time attendance wifi face time attendance biometric fingerprint time att

 A-C121 is a fingerprint attendence time terminal with classical style, its hardware structure adopts structured design of in dustrial grade. Front case is acrylic and wire drawing process, back case is with metal paint process. It is with our own fingerprint arithmetic which is the most advanced one in the world, automatically analyze the tiny difference of the latest fingerprints vs. the previous fingerprints and update accordingly to ensure the high accuracy and the optimum speed of fingerprint recognition. High recognition ability for injured and peeled fingers, the identification time is less than 0.8 second. With ID card(optional for IC card) function, multi validation methods by card, fingerprint and password combination. User-define for message display and screen display. Standalone to operate the device, U flash drive could realize all kind of setting for the device directly. TCP/IP communication, network connection is simple and convenient. Support Push Technology, realize data collection & sharing freely.

Parameter
Model A-C121

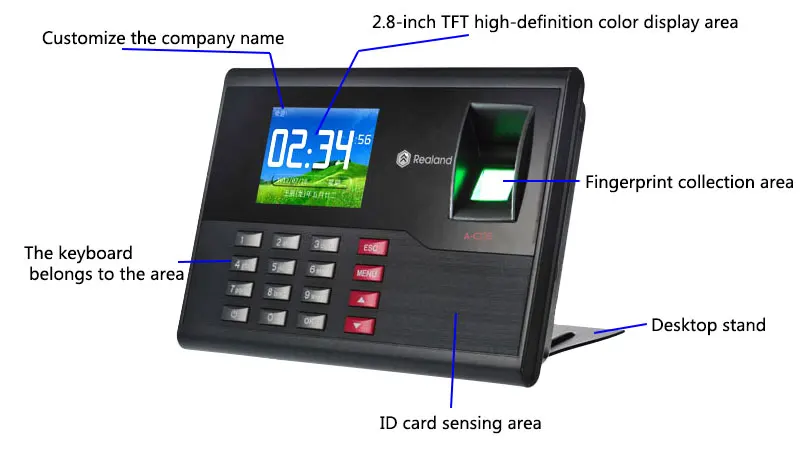

LCD Screen 2.8 inch TFT Color Screen
Fingerprint Sensor Resolution 500DPI (Optical sensor)
Hardware Platform REALANDR ZDC2911
Algorithm Version REALANDR RSFv5.1
CPU ARM926EJ CPU, Running Frequency: 200MHZ
Communication TCP/IP, USB Memory Disk, USB cable
User Capacity 2,000
Records Capacity 100,000
Software OS XP/Win2003/Vista/Win7/Win8 (32bit / 64bit)
Identification Time < 1 S
Authentication Method Fingerprint/ RFID Card (125Khz, EM4100) /Password
Language Chinese / English / Spanish/Arabic/ German (could customize others)
Bell Built-in timing bell
Operation Mode Off-line/Online
Power DC 12V/0.5A
FRR <1%
FAR <0.00001%
Operating Mode Off-line/On-line
Authentication Mode 1:1, 1:N
Operating environment Operating Temp: 0°C-50°C, Humidity:80%
Certificates CE, Type Inspection Report of Chinese Police Product

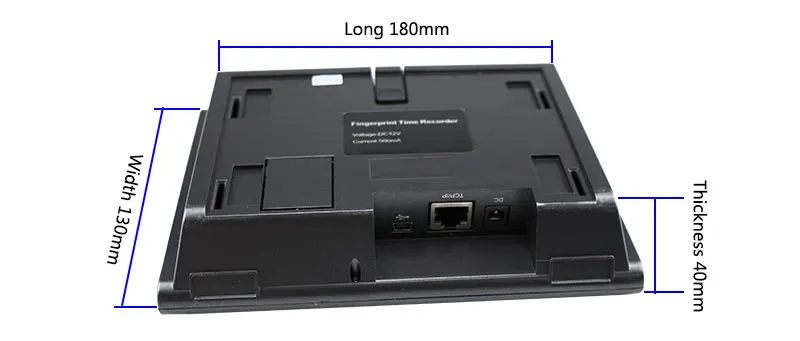

Dimension(L*W*H)mm



Terminal – 181*129*39mm

Package – 325*105*258mm

Weight Terminal – 0.335 Kg

Package -0.863Kg













A-C121-_01A-C121-_02

Product features

1. the use of true independent fingerprint algorithm, environmental, climate changes and finger injuries, Peeling fingerprint recognition ability significantly improved to achieve full fingerprint state recognition time is less than 0.8 seconds;
2. multi-functional authentication and identification methods, you can set the fingerprint + password + proximity card and other combinations of identification methods.
3. can be achieved completely off-line operation, with the U disk can complete the computer to set up the equipment, without the need to connect the machine;
4. support 11 job registration, you can use the phone number as a personal number;
5. support the Chinese lunar display.



Product description

A-C121-_05A-C121-_06A-C121-_07



Package

A-C121-_09

1* fingerprint time attendance machine
1* user manual
1* CD
1* Certificate
1* Power supply
1* Wall mounting bracket
1* Screws
1* USB communication cable

Default Software

A-C121-_13A-C121-_14

Customized  Payroll Software by AMPWIND
