Super scanner V metal detector 1165190
The super scanner V is a high performance Hand Held Metal Detector designed to meet the exact requirements of the security industry. Typical uses will include body search for offensive weapons in crowd control, airport and border security, checking parcels and letters for metal objects and anywhere that hidden me tal needs to be detected.Features
2.Simple and convenient to use, no adjustment is required ;
3.The detection distance will not be changed when the battery voltage drops from 9V to abou t 7V
4.Low power consumption ,can work for 40 hours continuously
5.There is automatic and continues alarm when the battery is used up
6.Switch on /off audio prompt function
7.With external rechargeable socket hole

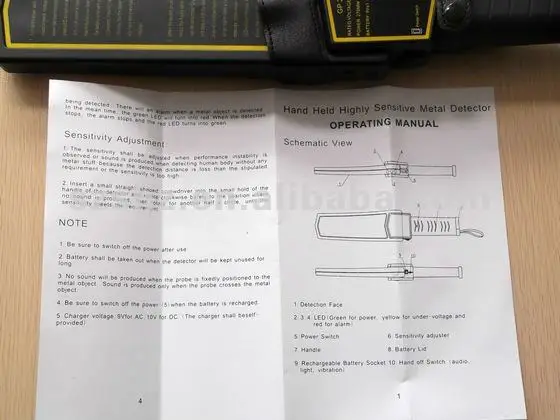

8.Has audio, light and vibration handoff switchSchematic View
1, power supply: 9 volt battery (6F22ND). or rechageable battery by adapter
2, power consumption: 270mW.
3, the operating frequency: 25KHz.
4. Current: less than 50mA.
5, the Operating Temperature: -37 °C -70 °C.
6. Net weight: 500g.
7. Size: 425 * 83 * 42mm.
8, Packing size: 580 * 340 * 480mm (25 pcs / box, Weight: 12.5KG/13.5KG)Method to use
1.Turn on the power switch (2). If a click sound is heard,it indicates that the power has been connected,and the green LED will turn on at the same time . if no click sound is heard, it indicates that no battery has been installed or the battery is not well connected .If the click sound is heard one after another it indicates that the battery cannot be used any more and a new battery shall be installed
2.When the switch-on click sound stops , the highly sensitive detection can be performed.Grasp the handle and detect wich the detection face around the object being detected ,there will an alarm when a metal object is detected .in the mean time ,the green LED will turn into red .when the detection stops ,the alarm stops and the red LED turns into greenSensitivity Adjust
1.The sensitivity shall be adjusted when performance instability is observed or sound is produced when detecting human body without any metal stuff because the detection distance is less than the stipulated requirement or the sensitivity is too high
2.Insert a small straight-shaped screwdriver into the small hole of the handle of the detector and rotate clockwise, until a sound is head, then rotate counter-clockwise barely to the position where no sound is produced ,then rotate for another half a circle , until the sensitivity meets the requirement Packaging & Shipping
1 X handheld metal detector
1 X manual
1 X colour box
supporting rechageable battery and adpater, too, if you need it, we can customize for you
