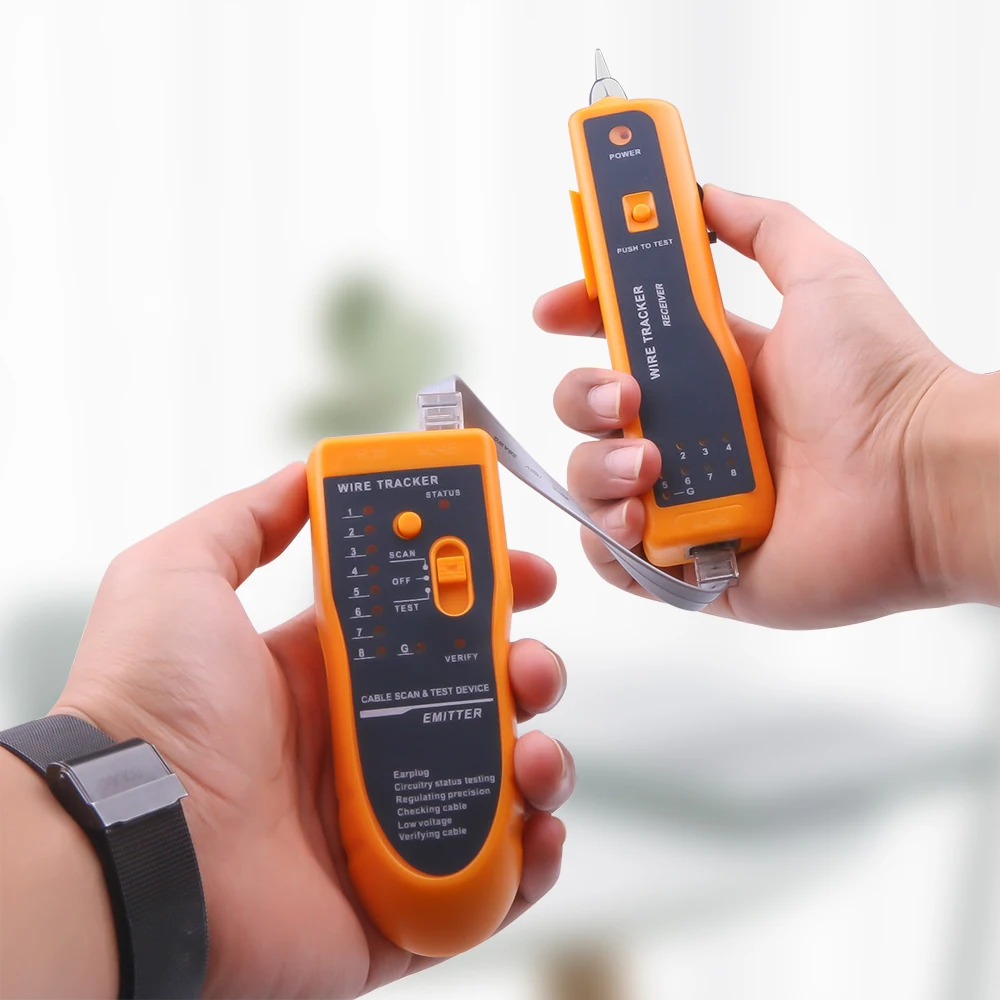

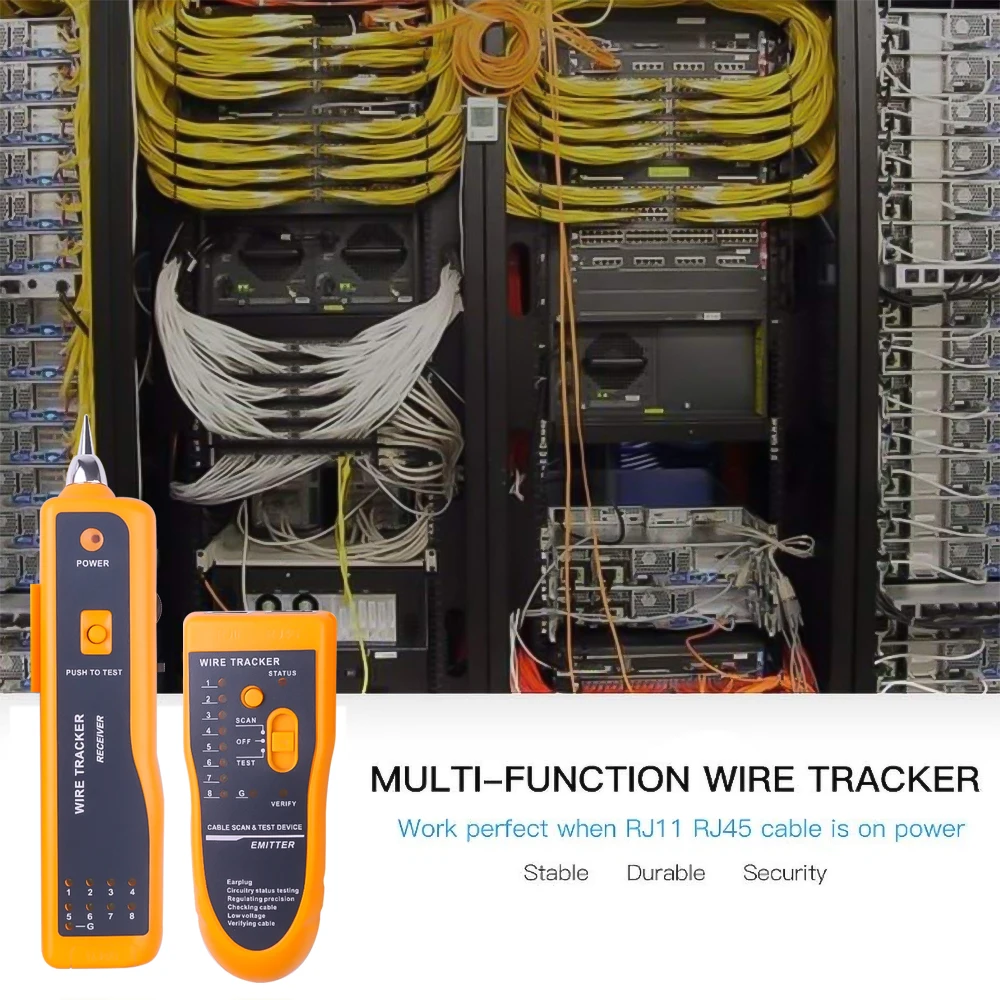

This item is designed for cable network system installation and network technician to diagnostic network problem.
Wire finding is a major unique function where other cable checkers do not have it, it can locate up to 3000m long wire or cable even in a complex PC network or telephone system.
It also has a built-in LAN cable mapping function, to quickly diagnostic LAN cable condition and to identify fault point or broken connection.

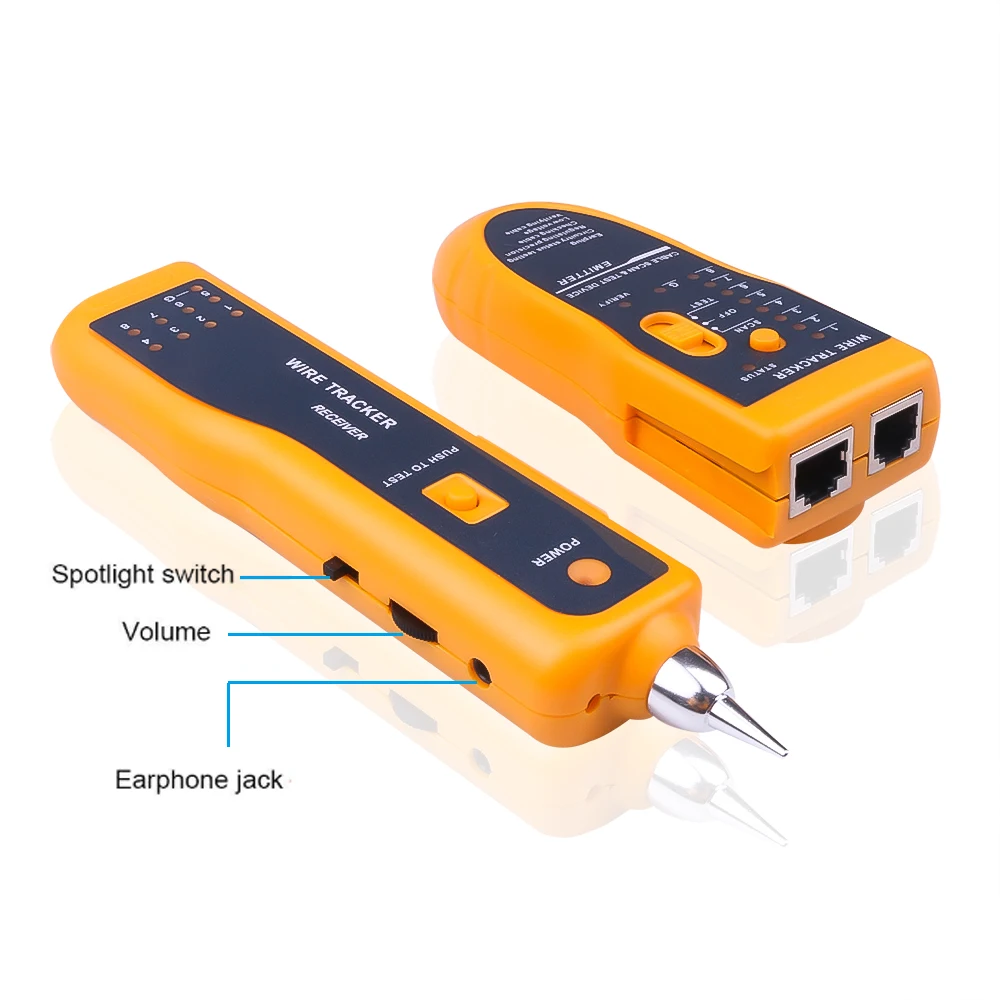

Bright red LED torch and External Earphone support is value added function to enable service technician to work conveniently and comfortably in dark and noisy environment.
Energy saving standby mode 7.Line-tracking function ( fast and reliable ) 8.On-line functions ( 18 indicators, short circuit,open circuit, cross, ect. glance ).
1. 100% brand new
2. Streamlined design and easy to carry
3. Comes with earphones usable in noisy situation
4. Flexible and versatile interface
5. Sensitive and adjustable volume control
Cable Tester for UTP STP RJ45(manual switch)
Automatic efficient scan for the miss wiring, disorder cable, open and short circuit
TEL BNC test available(Adapter needed)
Remotely test cable up to 1000 ft in length ( remote kit included )
Protective power switch for low power consumption
High quality protecive case provides more secure protection
Judge continuity of the cables or wires
Track the cables or wires, and diagnose the break point
Receiver the tone signal on the cables or wires (telephone line)
Identify the state in the working telephone line (clear ring, busy)
Send a single solid tone or a dual alternating tone to the object cables or wires
Working current: Tester: 10mA Receiver: 30mA
Signal transfe mode: Digital signal
Signal output level: 8Vp-p
Signal transfer distance: 3Km
Dimension:Transmitter: 126x49x34mm Reveiver:175x42x25mm
Power: by 2 x DC 9V Battery( not included)
1 x Cable Emitter
1 x Cable Receiver
1 x RJ11 Cable
1 x Earphone
1 x Cable with Crocodile Clamp
1 x Instruction Manual
Note:This item come without retail box,but we will pack well before shipping! Since the international air does not allow the air contains flammable and explosive goods, so the package does not contain the battery in delivery, thank you for understanding!
